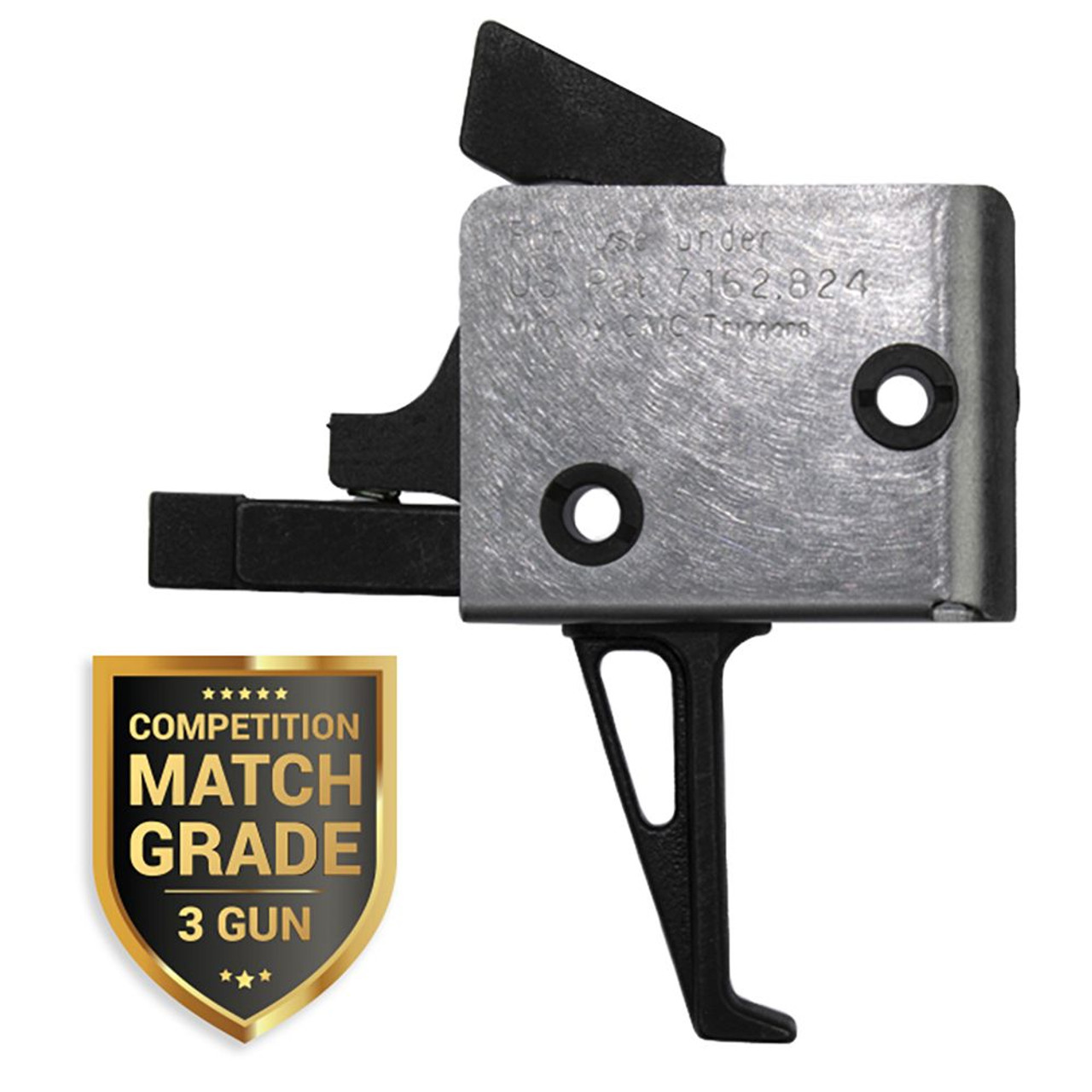

CMC Trigger AR-15/10 Flat Match Grade Single Stage Drop-In Unit

CMC Triggers Single Stage AR15/10 are available in configurations for Small Pin, Large Pin and M&P 15/22 Trigger in multiple pull weights and Signature Flat or Curved Bow. Please select the desired bow design and pin size from the drop-down menu. Manufactured in the Great State of Texas

FEATURES

Single Stage Match Trigger
Available Pull Weights: 2.5
Ultra-crisp trigger with no feel of creep prior to hammer release
The trigger has a glass-smooth break with no feel of grittiness
Minimal lock time is designed into the assembly using controlled hammer weight and balance activated by a rocket wire hammer spring, assuring repeatable function with either commercial or military grade ammunition
Trigger pull is factory pre-set and not user adjustable
Positive trigger reset allows a quick follow up shot on target
Hand assembled, and hand tested
Totally self-contained one-piece assembly
Comes with CMC Anti-Walk Pin Set
Fits MIL-SPEC AR-15 and AR-10 style rifles
Made from 8620 Alloy Steel and S7 Tool Steel with machined tolerances of +/– .001″
Easy to install – Install Instructions

WHAT IS A SINGLE STAGE TRIGGER? – A single stage trigger requires one range of motion to pull the trigger in order to release the hammer. The benefit of a single stage trigger is that it’s simple. Most shooters agree that a single stage trigger is crisper in the “break” of the trigger because you don’t feel the initial resistance of the first stage. A majority of shooters prefer the single stage triggers for most applications.

CMC’S CURVED TRIGGER BOW – For the shooter who wants a traditional feel. The Curved Trigger has an exceptionally smooth feel and ultra-clean break. With excellent lock time and lighting fast positive reset, the CMC Curved Trigger is unsurpassed by any other fire control group. CMC’s AR-15/10 patented “Signature”
CMC’S FLAT TRIGGER BOW – Ultimate for feel and break. With the Shooters finger coming to rest naturally on the shoe, every pull is the same as the one before it. The CMC Flat Trigger Bow renders a linear feel unsurpassed by any other trigger bow shape.

WHAT PIN SIZE SHOULD YOU USE?

LARGE PIN (.172 Ø) – Colt is the only AR brand to produce both small and large diameter pins in their triggers. Colt AR-15 rifles produced between 1991 and late 2009 commonly take a LARGE PIN.
SMALL PIN (.154 Ø) – If your AR rifle is NOT a Colt or your Colt was produced before 1991 or after 2009 it will take a SMALL PIN.
M&P 15-22 COMPOSITE PIN – The Smith & Wesson® M&P® 15-22 or any wider than standard receiver will use a SMALL PIN diameter but requires a longer pin length and will take an M&P 15-22 COMPOSITE PIN.

CMC Triggers offer all versions of their Drop-in AR Trigger in SMALL PIN, LARGE PIN, and M&P 15-22 COMPOSITE PIN. If you are still unsure of the pin diameter needed for your rifle you can take a measurement by pressing a pin far enough out of the receiver to measure its diameter, .172 Ø for LARGE and 154 Ø for SMALL.
