Description

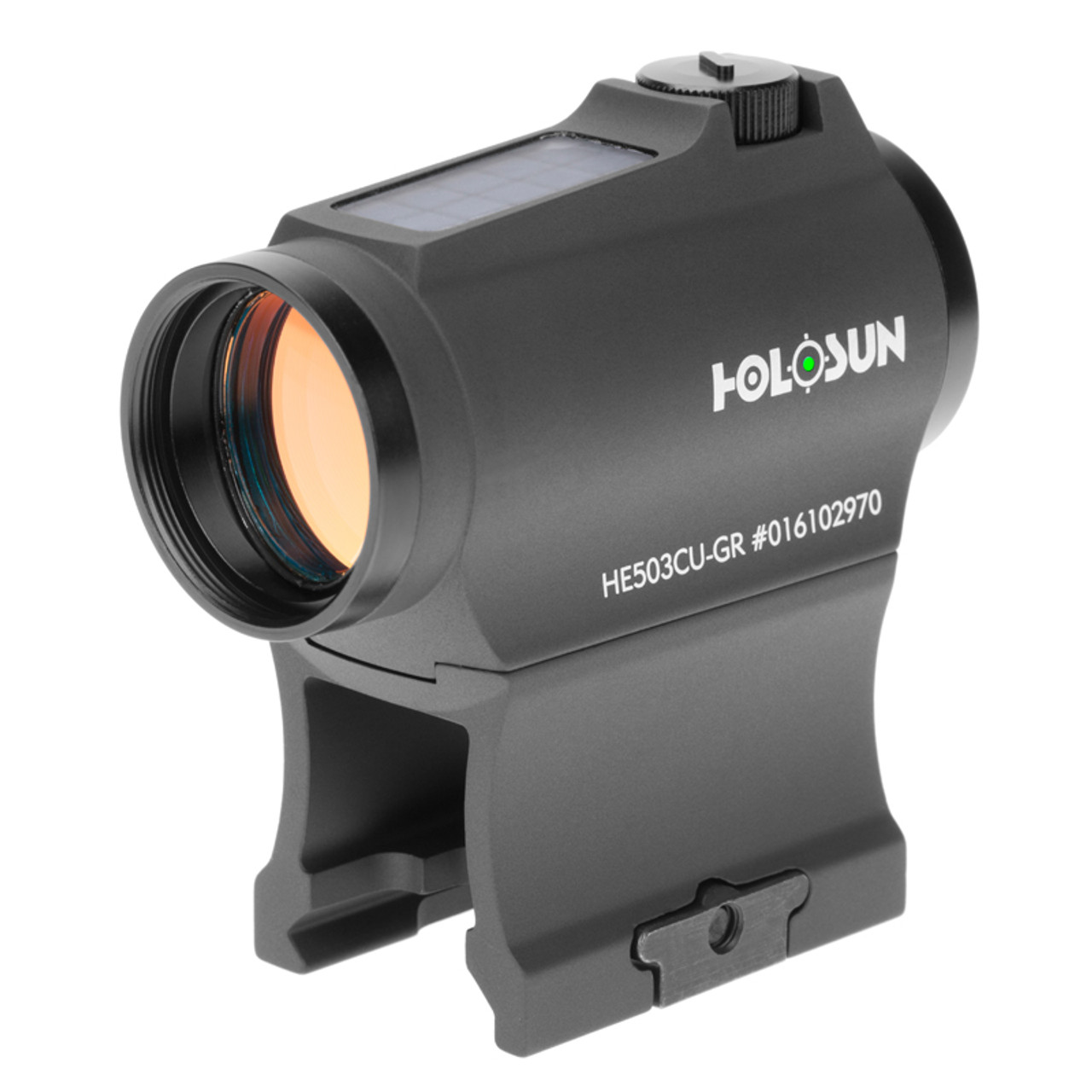

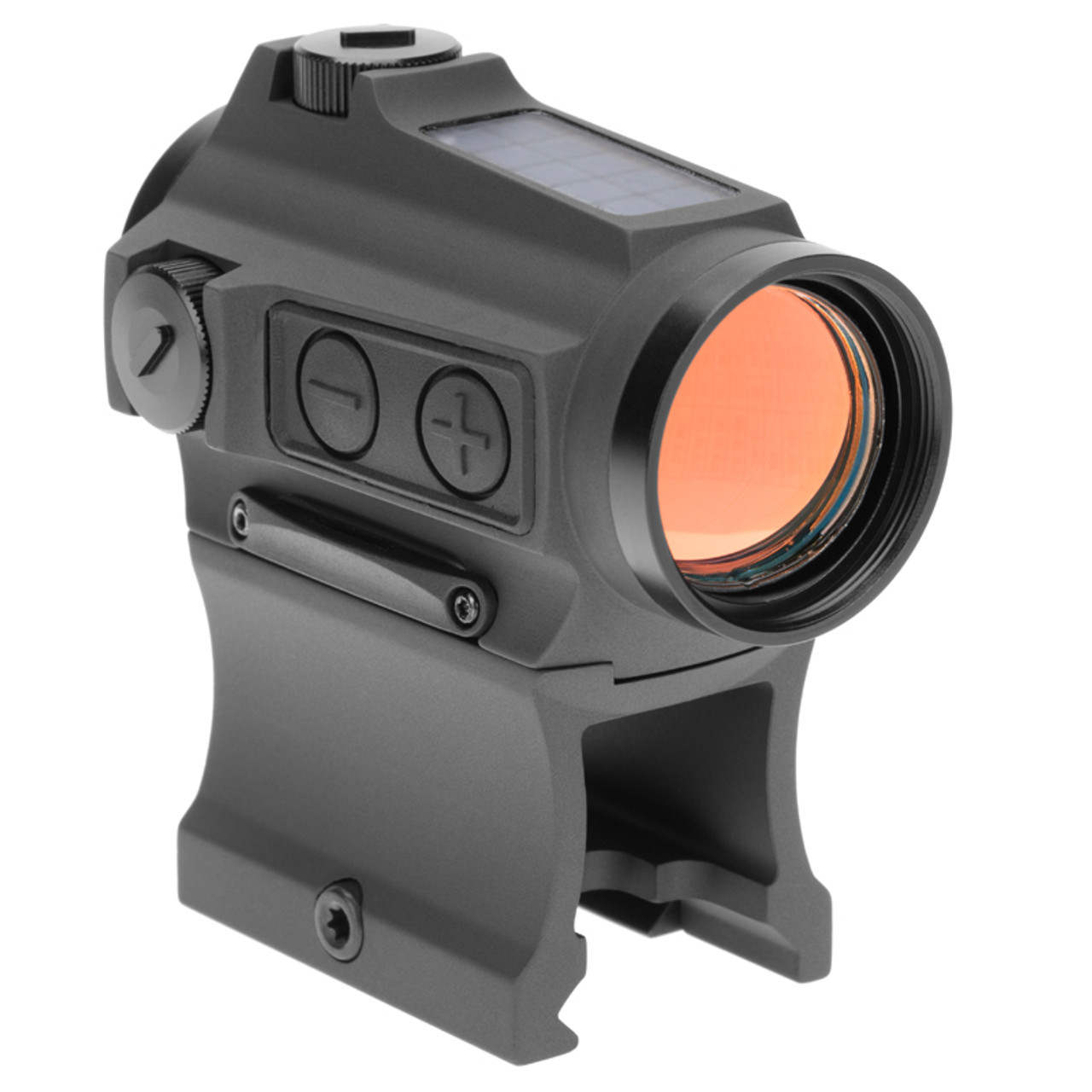

Holosun HE503CU-GR 20mm Micro Optical Sight
OVERVIEW
The HE503CU-GR is a 20mm micro optical sight designed for rifle and carbine applications. Features include Solar Failsafe, Shake Awake, 12 brightness settings, Holosun’s Green Super LED with up to 50k hours battery life, and Multi-Reticle System
In the Box
Lower 1/3 Cowitness Mount
Low Profile Mount
T10 L Key
Rubber Cover
User Manual
CR2032 Battery
Lens Cloth
SPECIFICATION
OPTICAL DATA
Reticle2 MOA Dot & 65 MOA Circle
Light Wavelength540nm
Reticle ColorGreen
Parallax FreeYes
Unlimited Eye ReliefYes
Magnification1x
Multi-CoatingsYes
ELECTRONIC DATA
Power SourceSolar & Battery
Battery TypeCR2032
Battery Life (Hours)50000
Brightness Setting10 DL&2 NV
PHYSICAL DATA
Window Size20mm Diameter
Dimension (in)2.6×1.43×1.6
Weight (oz)3
MECHANICAL DATA
Housing Material6061 T6 Aluminum
Surface FinishMAO
Adjustment per Click0.5 MOA
W&E Travel Range±50 MOA
ENVIRONMENT DATA
Storage Temperature-40℃~70℃
Working Temperature-30℃~60℃
SubmersionIP67
Vibration1000G
