Description

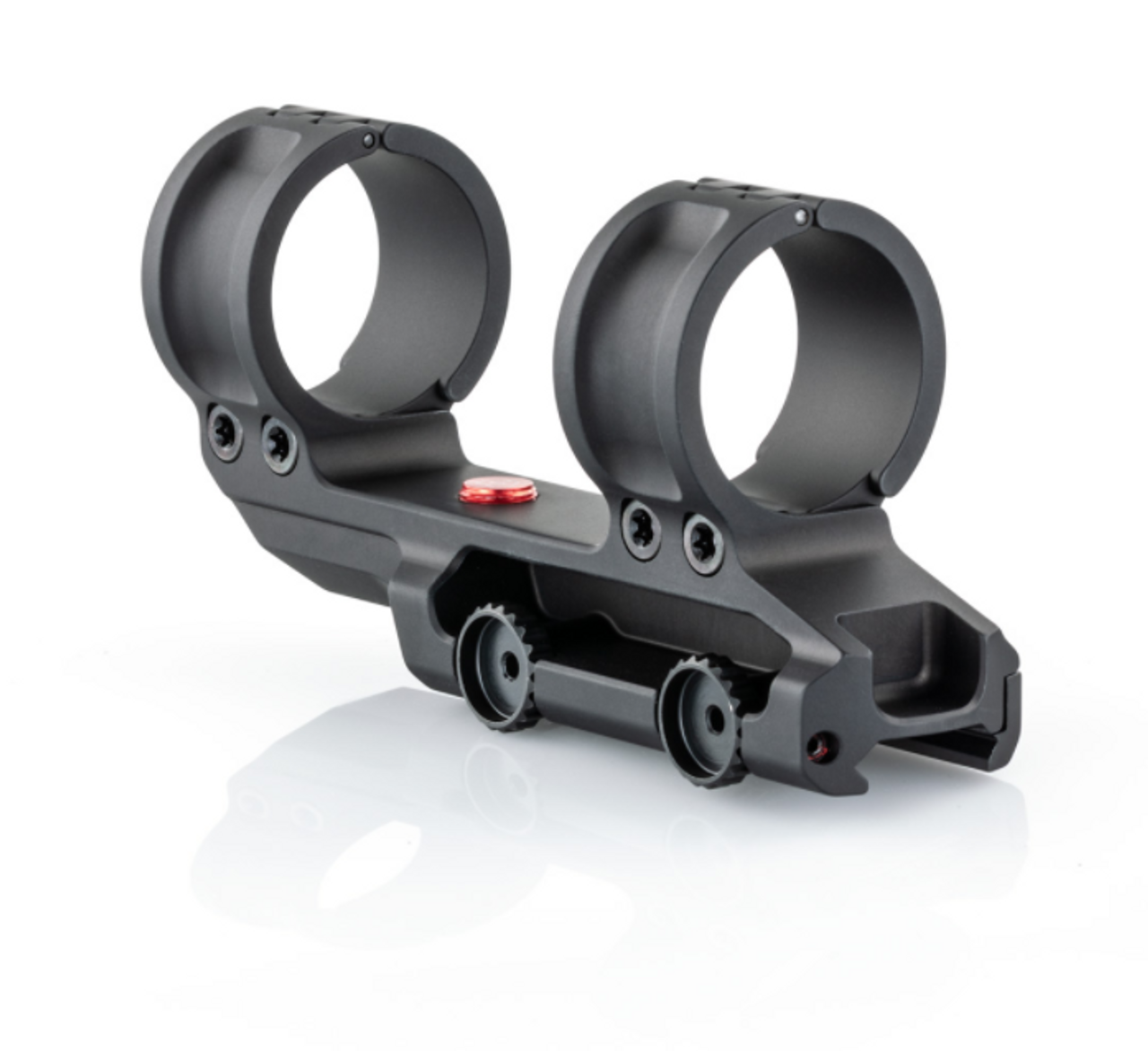

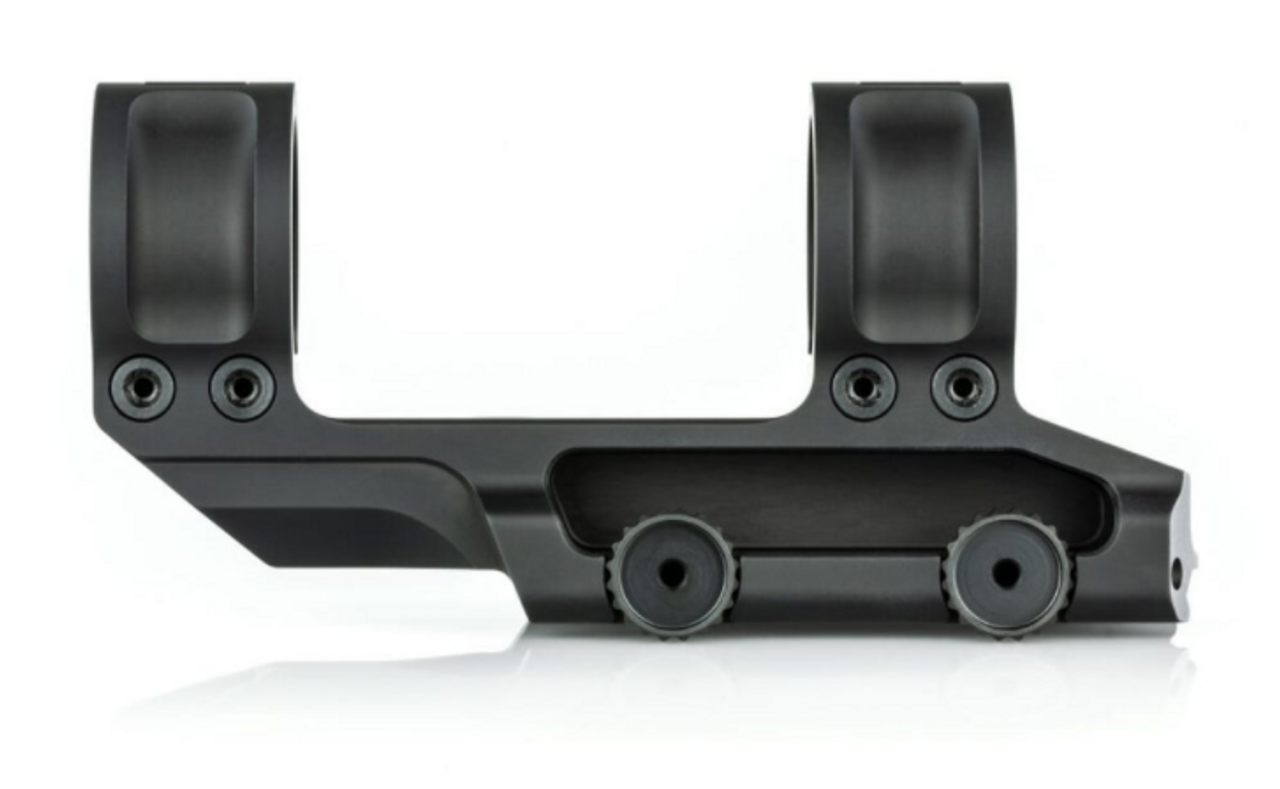

Scalarworks LEAP 30mm Scope Mount – LEAP/07
Ultra high-performance scope mount.

Designed for shooters who want the lightest, most rigid, and most compact quick-detach scope mount possible.

The LEAP/07 incorporates two of the most efficient structures known to man.

A tubular boom and an I-beam bridge, each with over-sized cross-sections, maximize rigidity and impact resistance while minimizing weight.

THE ONE RING

The Scalarworks® Ring was designed from the ground up to be stiffer, lighter, and easier to use than split rings.

A high-strength, precision fitted hinge ensures even pressure around your optic, without requiring the tedious and imprecise setup that split rings do.

Twin oversize CNC machined shoulder screws provide even tension and act as structural elements, making the entire ring assembly phenomenally rigid.

Each side of the Scalarworks® Ring is carefully lightened with a curvature continuous scallop that produces a very high strength-to-weight ratio.

The Scalarworks® Ring is wider than competing designs, providing more surface area to safely and securely hold your optic.

SPECS

Materials

7075-T6 Aluminum / 4140H Steel

Finishes

Type III Anodizing / Flash Nitride

Center height over rail

1.93″

Ring diameter

30mm

Cant

0MOA

Overhang

2.0″

Weight

5.88oz

Origin

United States of America

COMPATIBILITY

Rails

MIL-STD-1913 Picatinny*

INCLUDED

Mount

Scalarworks® Leap™ (SW0720)

Leveling system

LevelDrive™ screw

Fasteners

#10-32×0.61″ Nylok® treated

Drivers

T25 Torx driver bit

Manuals

Scalarworks® Leap™
