Description

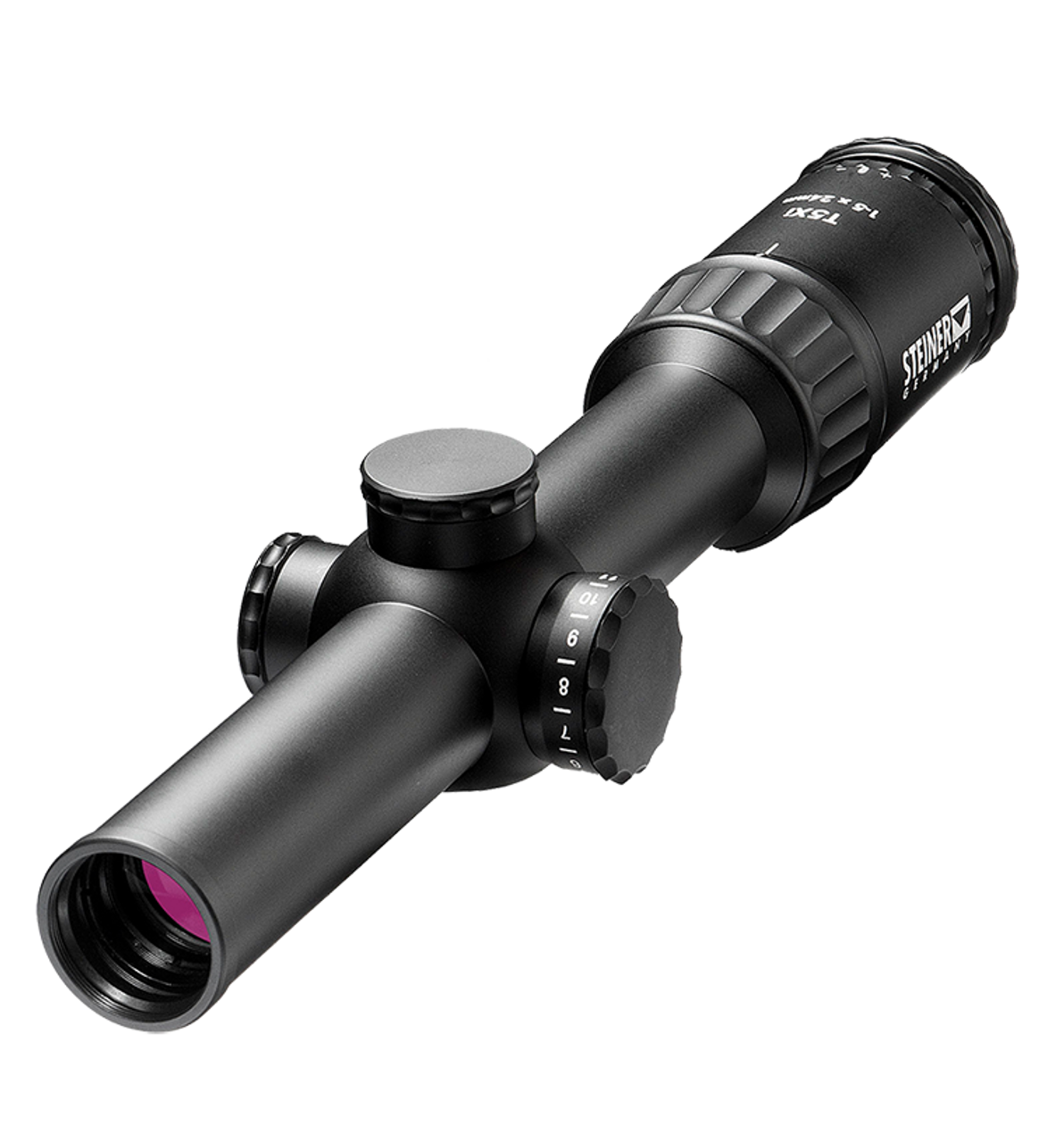

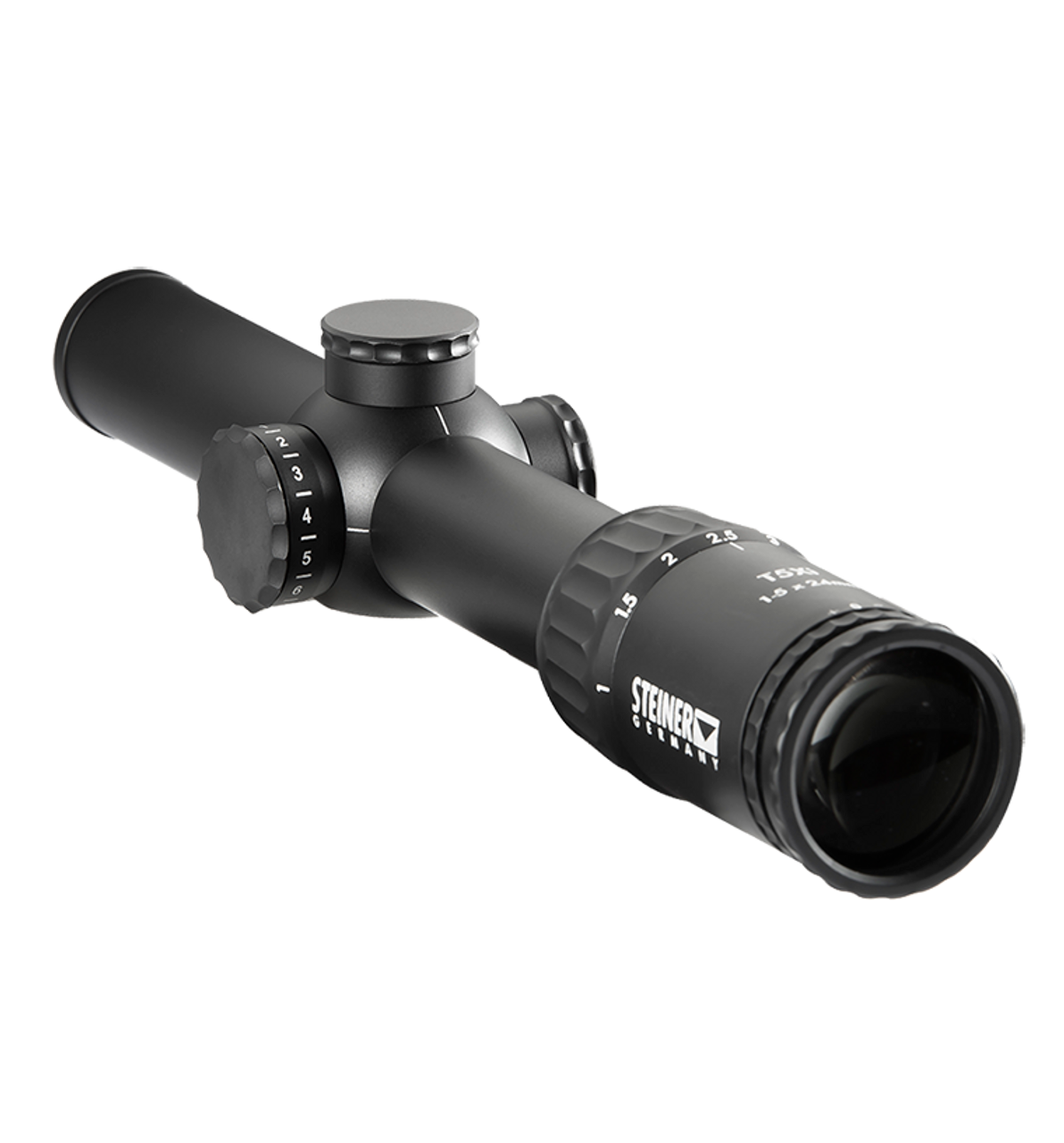

Steiner T5Xi 1-5x24mm
5102 for use with 7.62 w/ Steiner Rapid Reticle
The T5Xi 1-5×24 is designed as a close-combat scope. It features a 30 mm tube, with true 1x eyes-open capability for situational awareness and 5x power to engage distant targets. Select model 5101 for 5.56 rounds, or 5102 for 7.62 rounds.
Field of View at 100 yds 108-21
Eye Relief 3.5-4.3
Exit Pupil 11-4.8
Length 11.3″
Weight 19.4
Diopter Adjustment Range +2 to -3
Elevation Adjustment Knob Resettable Zero
Illumination Control Illuminated Reticle with 4-day/7-day levels
Wind/Elevation Click Value 1 cm (0.1 mrad)
Elevation Range at 100 m. 300 cm (30 mils)
Wind Range at 100 m. 300 cm (30 mils)
Parallax/Focus Fixed
Parallax/Focus Range 100 yd
Nitrogen Filled Yes
Operating Temperature Range -13° F to +145° F
Lens Cap Yes
Waterproof/Fogproof Submersible to 33 ft
Battery CR 2450
Special Features Resettable turrets, 2nd rotation indicator, locking diopter
Warranty Heritage™ Warranty
