Description

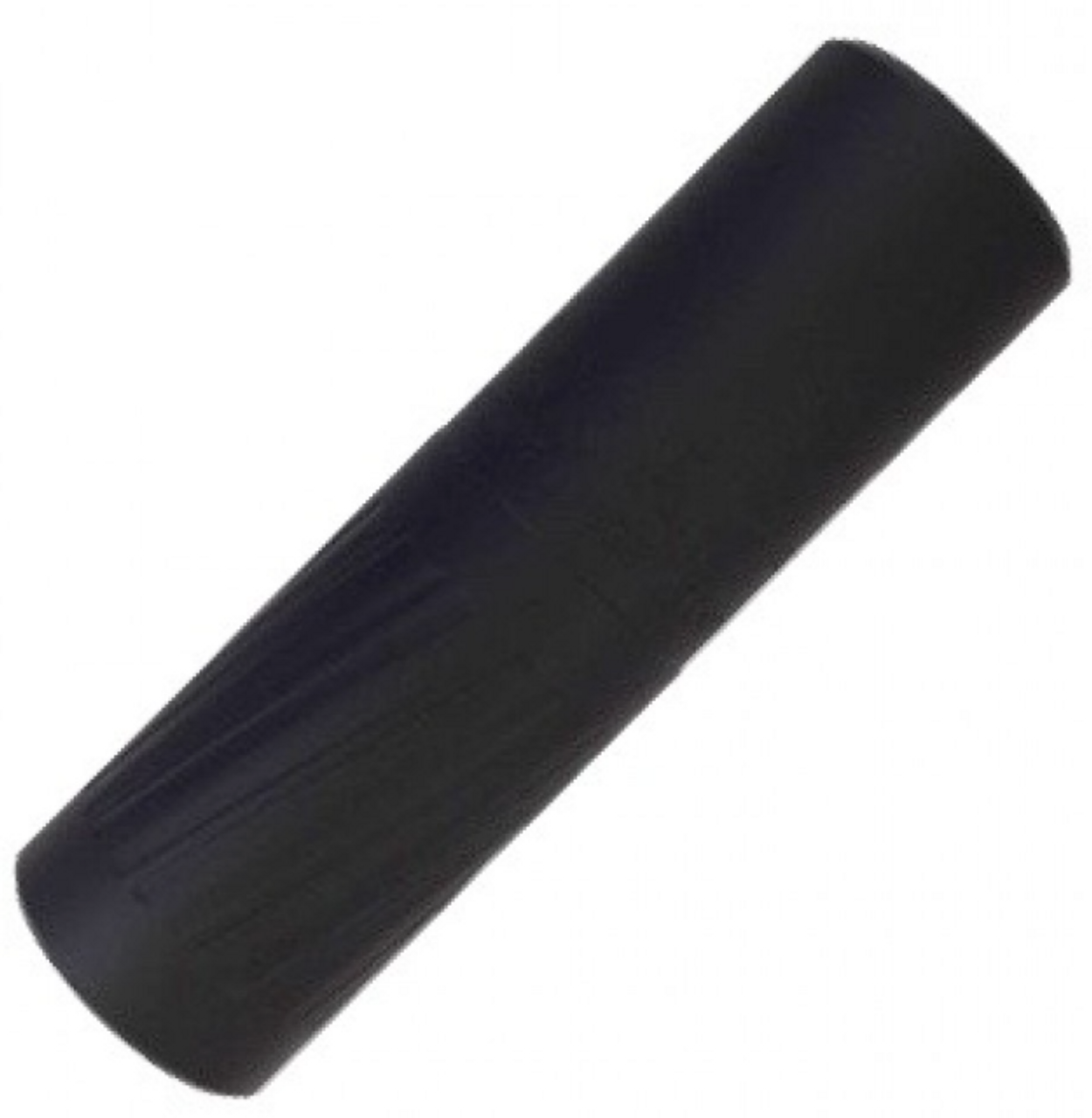

THUNDER BEAST ARMS CORPORATION ULTRA 5 SUPPRESSOR
Lightweight Precision Rifle Suppressor, .30 caliber, 5 inch.
Specifications
Caliber .30 caliber, up to .300 RUM
Material Titanium
Length 5 inches
Diameter 1.5 inches
Mounts CB series brake or flash hider, and
Direct Thread
Weight 7.6 ounces (CB mount)
9.4 ounces (direct thread)
Threads (Brake or Direct Thread) 1/2-28*, 5/8-24, 9/16-24, 3/4-24, 3/4-28, M18x1.0, M18x1.5
* Note: The 1/2-28 brake has part number 223CB-BRK:1/2-28 and has a .223 caliber aperture!
Finish Black CeraKote; OD Green or FDE available
Brake Material Heat-treated 17-4 stainless
Brake Finish Ionbond DLC
Use Precision/Long-range rifle, bolt or semi-auto
The ULTRA 5 is our super compact .30 caliber precision rifle suppressor. It is best for applications where minimum size is the highest priority but good suppression is still required.
The ULTRA 5 will suppress a typical .308 bolt-action rifle down to approx 143-145 dB1. The ULTRA 5 weighs only 7.6 ounces and is just 5 inches long.
The ULTRA 5 is also perfect for .300 Blackout rifles. A 16-inch bolt-action .300 Blackout will be suppressed down to 133-135 dB with subsonic ammunition.
ULTRA SERIES
The ULTRA series represents a revolutionary improvement in titanium precision rifle suppressors. We took everything we’ve learned over the last half decade building the best precision rifle suppressors in the world and put it into the ULTRA design. The ULTRA series offers unprecedented light weight and class-leading suppression levels.
Compared to the prior 30P-1/30CB9 series, the ULTRA series is 25-30% lighter, 4-5 dB quieter, and much stronger. The ULTRA series holds the same precision and repeatability as the 30P-1/30CB series.
The .30 caliber ULTRA series includes three suppressors: 9-inch, 7-inch, and 5-inch versions are available. They are available in either our Compact Brake (CB) Mount (a “thread over muzzle brake” type mount) or in a direct thread mount.
The CB mount and direct thread mount have equivalent accuracy and repeatability.
With the CB mount, the suppressor mates to a conical shoulder on the brake and locks up rock solid and extremely tight. In direct thread configuration, the ULTRA suppressors use a heat-treated 17-4 thread insert and initial blast shield. The ULTRA series suppressors also have the flexibility to be changed from direct thread to CB mount and vice versa via a simple factory service operation, in case your needs change. This is accomplished by removing or replacing the default brake from the direct thread version.
The ULTRA series is constructed of titanium with a fully-welded core. This material and construction provide a great strength to weight ratio. It can take whatever your precision rifle can dish out.
The ULTRA baffle stack was completely redesigned, but retains the principles that made the 30P-1 stack such a great precision and long-range suppressor. Thunder Beast Arms Corp suppressors have racked up impressive results at long-range field shooting events nationwide, and have been the most popular suppressor used in the Precision Rifle Series (top 50 competitors) for three years running.
Many long-range shooters prefer shooting suppressed because the muzzle blast and concussion is eliminated, while the recoil impulse is reduced and smoothed out over time. The net result is that the rifle is easier to shoot and it’s easier to make hits. Communication with your spotter is easier because the need for hearing protection is reduced.
The .30 cal ULTRA was designed around .308 for maximum flexibility and is rated up to .300 Winchester Magnum (18″ barrel), but it’s the ideal suppressor for the most competitive mid-sized cartridges for long-range shooting such as .243 Winchester .260 Remington, 6.5 Creedmoor, 6.5×47 Lapua, 6.5-284 Norma, and 7mm Remington Magnum & WSM.
SPECIAL FEATURES
Direct thread attachment option
CB series muzzle brake and flash hider attachment option
Ionbond DLC coating on CB muzzle devices
Conical shoulder surface on CB mount
100% titanium construction
360-degree fully-welded baffle core
Helical Baffle Technology
Magnum rated
Rock-Solid POI Repeatability
APPLICATION NOTES
Minimum barrel lengths2:
.300 Blackout: 8″
6.8 SPC, 7.62×39: 10″ *
.223 Rem, 5.56, 6.5 Grendel: 11.5″ *
.308 Win: 14.5″ *
7mm RM, .300 WIN MAG: 18″
7mm RUM, .300 RUM: 20″
28 Nosler, 7 STW: 22″
26 Nosler: 23″
Please contact tech support for:
7mm cal loads exceeding 90 powder grains,
.30 cal loads exceeding 100 powder grains
For questions about a particular rifle/load combination please contact us.
* SBR use in these calibers, CB brake mount or Direct Thread recommended.
Please note that thermal input will be higher with shorter barrels. Ultra series suppressors should be kept under 800 degrees F.
1. Measured in accordance with MIL-STD-1474D using a BK 2209 SLM one meter offset from muzzle
2. Max loads / min bbl lengths rated with CB Brake or direct thread
MATERIAL PROPERTIES
The Ultras were designed to be the “ultimate” lightweight precision rifle suppressor. This means we used materials to meet those goals. Titanium, even Grade 5, is ultimately limited by temperature. The Ultras are very strong but excursions above 800 degrees are not good for the material. If you take it far enough above 1000 degrees, it will get too weak to sustain the blast and you would eventually get a failure. We recommend keeping the Ultra series less than 800 degrees.
Full auto by itself does not really increase the pressure or stress on the can, it’s the heat energy input in combination. Full auto or bursts would be fine on an Ultra as long as the material temperature does not exceed that 800 degree safety mark. In our testing, one magazine fired rapid (mag-dump) from from an AR-10 or AR-15 does not exceed 800 degrees. Keep in mind this is firing at a full-auto-like rate. At that point you’d just have to let it cool. The second magazine may or may not cause it to exceed it depending on ambient conditions, loads, barrel length, etc. A shorter barrel will cause more heat input into the suppressor and its temperature will rise faster.
